MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers
MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

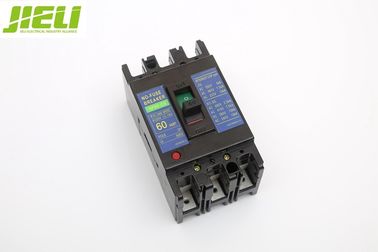

बड़ी छवि :  MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

उत्पाद विवरण:
उत्पत्ति के प्लेस: Zhejiang,China(Mainland)
ब्रांड नाम: JIELI
प्रमाणन: CE/ISO9001/CB/TUV
मॉडल संख्या: JM11
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 500pieces
मूल्य: Negotiable
पैकेजिंग विवरण: Standard export carton or according to your request.
प्रसव के समय: Within 20 days
भुगतान शर्तें: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
आपूर्ति की क्षमता: 100000pieces per month.
विस्तृत उत्पाद विवरण
हाई लाइट:

electric circuit breaker

,

low voltage circuit breaker



MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers





Quick Detail:



Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI

Model Number: JM11

Type: Moulded Case Circuit Breaker

Poles Number:3

Rated frequence:50/60HZ

Mechanical life:8500 times

Deposit:30% deposit

Certificate: CE,BV

Guarantee period:5 years

OEM: Available

Quality: Stable and reliable





Description:



JM11 series MCCB moulded case circuit breaker is suitable for industrial or commercial power and

lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

JM11 series moulded case circuit breaker is a kind of economical breaker with the characters of

stable and reliable function, beautiful appearance, small size and long life.

JM11 series moulded case circuit breaker can be used for conversion of line and infrequent

starting motor.

JM11 series moulded case circuit breaker can also be attached to install the accessories which

have protection function for avoiding loss-voltage, under voltage.

JM11 series moulded case circuit breaker can install connection line with front board and back board.

JM11 series moulded case circuit breaker also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.





Specifications:



TYPE

JM11

RATED CURRENT OF FRAME SIZE   INM(A)

63

RATED CURRENT IN(A)

10,16,20,25,32,40,50,63

RATED OPERATION   VOLTAGE UE(V)

AC400

RATED INSULATION VOLTAGE UI(V)

AC500

NUMBER OF POLES

3

3

4

LEVEL OF RATED ULTIMATE SHORT CIRCUIT BREAKING   CAPACITY

S

H

RATED ULTIMATE SHORT   CIRCUIT BREAKING CAPACITY ICU(KA)

AC690V





AC400V

25

50

RATED SERICE SHORT   CIRCUIT BREAKING CAPACITY ICS(KA)

AC690V





AC400V

18

35

OPERATION LIFE WITH CURRENT

4500

OPERATION LIFE WITHOUT CURRENT

8500

SIZE

L

135

W

78

103

H

73.5

81.5

ARCING DISTANCE(MM)

0,≤50
