Heat Resisting RoHS PCB Membrane Switch Service Life 1 Million Times For Ipad

चीन Heat Resisting RoHS PCB Membrane Switch Service Life 1 Million Times For Ipad आपूर्तिकर्ता

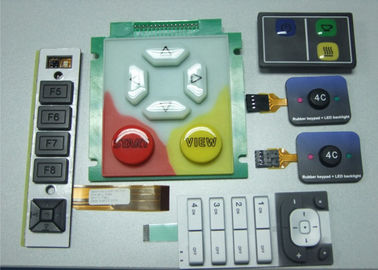

बड़ी छवि :  Heat Resisting RoHS PCB Membrane Switch Service Life 1 Million Times For Ipad

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन
ब्रांड नाम: TKM MS
प्रमाणन: ISO9001:2008, SGS,Rohs
Model Number: TKM--MS--330

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 100pcs
मूल्य: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C, Western Union
Supply Ability: 100000Pieces per month
Contact Now
विस्तृत उत्पाद विवरण
Material: PC material Embossed: Full key embossed
Circuit: PCB Adhesive: 3M468

Heat Resisting RoHS PCB Membrane Switch Service Life 1 Million Times For Ipad





Quick Detail:



Type

PCB

Application

Electronic Products

Color

blue

Feature

  • Energy-efficient & Low power

Machine Stiffness

Rigid

Lays



1-26

Material

PET /PC

I nsulation Material

Organic resin

I nsulation layer thichness

General

Antiflaming Speciality

VO

Processing Technic

Electrolytic foil

Reinforcing material

Glass fiber

Insulating Resin

Phenolic

Export Markets

Global







Specifications



As per request OEM/OEM



Material:pi 1 mil
Cu: 1 oz
PI: 1 mil
Surface treatment: pure-tin plating
Minimum hole dimension: 0.3mm
Minimum linear width: 0.08mm
Minimum linear distance: 0.08mm
External tolerance: +/-0.05mm
Welding resistance: 280 more than 10 seconds
Peeling Strength: 1.2kg/cm2
Heat resistance: -200 to +300 degrees C
Surface resistivity: 1.0 x 1011
Bandability: meet IPC standard
Chemical resistance: meet IPC standard





Description:



1. Copper foil substrate (Copper Film)
Copper foil: basically divided into two kinds of electrolytic copper and rolled copper common thickness 1oz 1/2oz and 1/3 oz
Substrate film: a common thickness of the 1mil with 1/2mil two kinds.
Glue (adhesive): thickness according to customer requirements.



2. Cover film protection film (Cover Film)
Cover film protection film: surface insulation. The common thickness 1mil with 1/2mil.
Glue (adhesive): thickness according to customer requirements.
Adhesive buildup of foreign matter before pressing the shape from the paper: avoid; easy job.



3. Stiffener (PI Stiffener Film)
Stiffener: reinforcing the mechanical strength of the FPC, to facilitate the surface mounting job. Common thickness 3mil to 9mil.
Shape from the paper: to avoid foreign matter adhesive buildup Crimping before the.



4. EMI: electromagnetic shielding film, the protection circuit board line without interference from the outside world (a strong electromagnetic District or susceptible to interference zone).




Applications:


1. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.


2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen


3. CD player
Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around


4. The mobile phone
Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.




5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc
