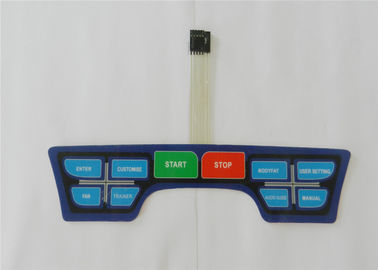

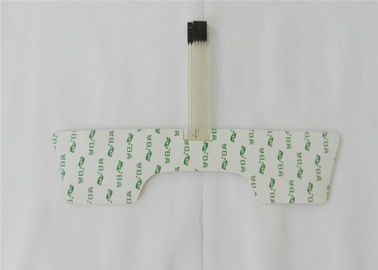

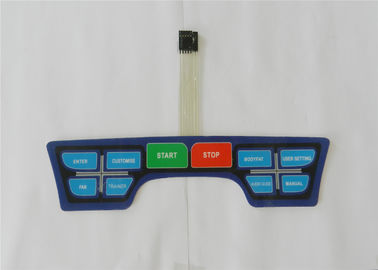

3M Adhesive Waterproof Membrane Switch With LEDs
> Total thickness : 1.25 mm
> Surface : glossy
> Window : no
> Graphic overlay material : 0.188 mm glossy PET
> Surface : glossy
> Overlay button : flat
> Color : 4
> Led window : without
1. A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
B. For mechanical and electrical products such as CNC machine electric weighing ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome
Maximum Circuit Rating: 35V(DC),100mA,1W
Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: < 5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Dura switch: ≥ 10million times
Actuation Force: Flat: 57~284g(2~10oz)
Switch Height: Flat: 0.1~0.5mm
Operation Temperature: -40~+80 Degree Centigrade
Storage Temperature: -40~+80 Degree Centigrade
Humidity: 90%~95%, 240 hours
A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..
A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
Why to choose Shenzhen boerzhuo membrane switches?
1. No need to worry about the qualities (We take response if our reason lead failure ).
2.Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3.We are specialized ,can help to design and make good suggestion .
4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
5. We can accept small quantity order and offer competitive price.
6. Strict quality inspection ,100 % function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.
