उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| input: | 64ch | output: | 16 |
|---|---|---|---|
| menu: | English OSD menu | ||
| हाई लाइट: | analog matrix,analog switch matrix |
||

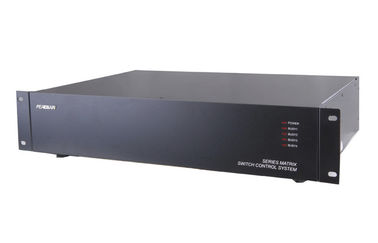

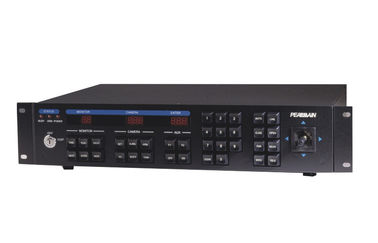

PE50 Full cross point analog Video Matrix , Pearmain standard matrix switch 64x16
Quick Detail:
● Integrated Menu Setup
Menu Setup including English operation interface, with time, date and 16pcs character; it can run on-screen menus for system program by monitor 1, keyboard on matrix or main control keyboard
● Camera image masking and Inserting
Masking, to jump over the camera image which don’t need to display, Inserting, to insert and display which need to display (but don’t’ display).
●Up To 64 Cameras And 16 Monitors for one Matrix Bay
● Alarm On/Off
PE50 can set alarm on/off schedule by menu of alarm on/off, so system could auto run alarm on/off according to time set in menu.
● CE, FCC, ROHS,UL compliant
Description:
PE50 series matrix is an integrated system of audio/video and switch/control, it can control 1-64ch audio/video input and 1-16ch audio/video output, It also can allocate up to 16 keyboard, It can control multiple speed dome based PE5135 code converter, up to 64ch camera input and 16ch monitor output.
Specifications:
|
Communication Mode |
serial (RS-485),TCP/IP |
|
Display Mode |
numeral duct |
|
Baud Rate |
9600 bits/s |
|
Connection Mode |
STP |
|
Video Isolation degree |
-45dB |
|
Channel Bandwidth |
10 MHz |
|
Video S/N |
65 dB |
|
Differential Phase |
≤1.1° |
|
Differential Gain |
≤0.6% |
|
Insertion Gain |
≤0.1db |
|
Synchronous Nonlinear Distortion |
1% |
|
Brightness Nonlinear Distortion |
1.50% |
|
Inter-modulation Distortion |
0.50% |
|
Amplitude Frequency Characteristic |
1.5db |
|
Waveform Distortion in a Short Time |
3.50% |
|
Cluster Frequency Delay Characteristics |
6ns |
|
Brightness/Color Time Delay Offset |
2.5ns |
|
Brightness/Color Time Delay Gain |
8% |
|
Video Input Signal |
1Vp-p /75Ω |
|
Video Output Signal |
1Vp-p /75Ω |
|
Audio Input Signal |
1Vp-p |
|
Audio Output Signal |
1Vp-p |
|
The Maximum Inputs (can be controlled) |
64 |
|
The Maximum Receiver/drivers (can be controlled) |
255 |
|
The Maximum allocated keyboard |
16 |
|
Memory Retention in Power-off |
10 years |
|
Operable Keyboards number |
main keyboard with 35 keys and, sub keyboard with 23 keys |
|
temperature |
-10℃～ +35℃ |
|
Working Voltage |
AC 220V ±10% 50/60 Hz for matrix, DC 9V ±10% for sub keyboard. |
|
Matrix Weight |
5.8kg |
|
Matrix Power |
30 W |
|
Matrix Size |
430(W)×90(H)×313(L)mm |
|
Installation Mode |
desktop or 19” standard rack |
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
