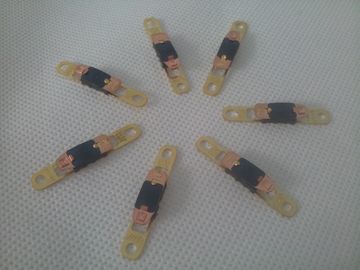

Durable Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC drier

बड़ी छवि : Durable Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC drier

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	DESHENG
प्रमाणन:	UL TUV
Model Number:	CCS9

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	500pcs
Packaging Details:	1000pcs per inner box
Delivery Time:	5 days on order date
Payment Terms:	T/T
Supply Ability:	1500000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

temperature range:

from 80 to 150 degree

contact resistance:

50 ohm maximum

contact capacity:

20A /24VDC 20A /125VAC 12A /250VAC

हाई लाइट:

motor thermal protection

thermal overload protector

Durable drier Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC

Principle and structure:

DS series thermal protector is a kind heating protector with an open structure. It is ideal
protectors for pet drier, industrial heating gun, and heaters, etc, for its prompt snap action and
accurate cutout temperature.

At the heart of the device is a bimetal snap-action disc. When the temperature of this disc
reaches its pre-calibrated temperature, it snaps open, resulting in an open circuit. This
temperature is reached during a fault condition caused by an increase in ambient temperature.
After the device breaks the circuit, the system cools and automatically resets allowing power to
be restored to the circuit.

◆ Contact capacity:
20A /24VDC 20A /125VAC 12A /250VAC
Temperature specification:
Open temperature: 50~150±5℃; one gear every 5℃.
ON-OFF differential ＞10℃

◆ Cycles:
6000 cycles @ rated current and voltage.

◆ Safety certifications
UL: E465826 TUV: R50279441
