उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Product Name: | 4-Way Cassette Fan Coil Unit | Application: | HVAC sysem |
|---|---|---|---|
| Cooling capacity: | 400CFM / 680m3/h | Fluid: | Chilled water/hot water |

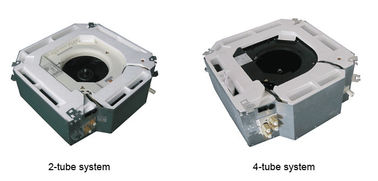

| System: | Two Pipe system | Power supply: | 220V/1PH/50Hz |
| Drain pump: | Equipped inside | Controller: | Remote control |
| हाई लाइट: | cassette fan coil unit |
||

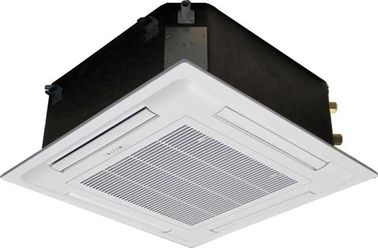

K Series 4-Way Cassette Fan Coil Unit FP-68KM, 400CFM, HVAC system FCU
Specifications:
|
Model |
|
FP-68KM |
|||
|
Air Volume |
High |
m3/h |
680 |
||
|
Middle |
540 |
||||
|
Low |
400 |
||||
|
External static pressure |
Pa |
0 |
|||
|
Power supply |
|
220V/1PH/50Hz |
|||
|
Cooling capacity |
TH |
H |
W |
3600 |
|
|
SH |
2790 |
||||
|
TH |
M |
W |
3080 |
||
|
SH |
2186 |
||||
|
TH |
L |
W |
2700 |
||
|
SH |
1743 |
||||
|
Heating capacity |
H |
W |
5400 |
||
|
M |
W |
4375 |
|||
|
L |
W |
3751 |
|||
|
Noise lelvel |
High speed |
dB(A) |
41 |
||
|
Power input |
W |
62 |
|||
|
Water flow |
m3/h |
0.62 |
|||
|
Pressure drop |
KPa |
22.1 |
|||
|
Inlet/outlet water pipe connection |
|
ZG3/4” |
|||
|
Coil |
Type |
|
Copper tubes with hydrophilic aluminium fins |
||
|
Max.working pressure |
MPa |
1.6 |
|||
|
Drain water pipe connection |
mm |
Ф26 |
|||
|
Dimensions (L*W*H) |
Unit(drained by pump) |
mm |
570*570*290 |
||
|
Panel |
mm |
650*650*45 |
|||
|
Net weight(drained by pump) |
kg |
23 |
|||
Description:
1. 4-way air flowing, which can uniform temperature distribution in the room;
2. Thin design unit, which can be installed in a limit ceiling,(the min. thickness is 290mm);
3. Easy to be installed, low installation cost;
4. Remote controller is standard and wire controller is optional;
5. Auto swing: using advanced 3D software to design the centrifugal fan with streamline and big diameter turbin;
6. High lift water drained pump(750mm), easy to plan the condensate drained pipe;
7. Float switch inside to prevent from leaking;
8. K style cassette fan coil unit can maintain the pump and water level switch from the external of unit, can be easily examine and repair the pump as long as just remove 4 screws;
Applications:
1. Commercial buildings: Star hotels, restaurants, office buildings, schools, supermarkets, shopping mall, entertainment centers,theaters,etc
2. Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, church,etc
