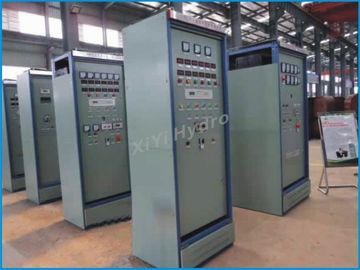

Francis / Pelton / Kaplan Water Turbine Control Panel for Hydropower Plant

Francis / Pelton / Kaplan Water Turbine Control Panel for Hydropower Plant
Francis / Pelton / Kaplan Water Turbine Control Panel for Hydropower Plant

बड़ी छवि :  Francis / Pelton / Kaplan Water Turbine Control Panel for Hydropower Plant

उत्पाद विवरण:
Place of Origin: Guangdong China
ब्रांड नाम: Xin Yi Hydro
प्रमाणन: CE
Model Number: Turbine Control Panel
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 set
मूल्य: Negotiable
Packaging Details: Wooden case export standard package
Delivery Time: 30 days to 60days
Payment Terms: L/C, T/T
Supply Ability: 100Set Per year
विस्तृत उत्पाद विवरण
Product name: Generator control panel Material: Steel
Water head: 2M to 200M Capacity: 100KW to 10MW
हाई लाइट:

hydro turbine control system

,

control panels

1250kw Hydro Turbine generator control panel



Detailed product description



  • Turbine type: Generator control panel
  • Material: Steel
  • Water head: 2M to 200M
  • Capacity : 100KW to 10MW



Applications:



  1. Water head : 2m to 200M , water flow: 1M3/s to 8M3/S
  2. Output power: from 100KW for each turbine
  3. Frequency : 50HZ or 60HZ, Voltage: 400V or 480V.
  4. Speed (R/MIN)from: 500R,600R,750R,1000R/MIN
  5. Runner material: stainless steel, runner size from 0.5 m to 1m in diameter
  6. Xin Yi Hydro turbine is a high quality hydro turbine manufacturer in China.



Description:



What is the hydro power plant control panel ?

Control panel is main function for monitoring hydro power plant, measurement, control, regulation, protection and communication, power supply, electric energy conversion, distribution and control, guarantee the safe and reliable operation, and to realize “Unattended, less unattended” and save manpower costs. The common control and protection panels for the project are LCU panels, synchronous panels, DC power systems, thermometry braking cabinets, AC panels, metering panels, distribution cabinets, protection and control panels, in order to send electricity to grid, control panel perform its function to the grid and control and turbine speed.



Specification:



Type

Hydro generator control panel

Water Head

2m to 200m

Design Water flow

0.1m3/S to 3M3/S

Installed Capacity

From 100KW to 10MWW for one single turbine

Generator Type

Synchronous AC control panel

Voltage

400V or 6300V

Other Equipments

Governor, Valve, control panel with Excitation



Technical data for Synchronous control panel



Guarantee to grasp the first synchronization chance to realize the synchronization accurately, quickly and reliably.
Auto-change parameters has the ability to adjust the frequency pressure and predict the switching on phase angle.
It has multi adjustment methods to adapt to different working objects. It has multi trouble inspection functions with reliable and easy use.
It is suitable for one set of generator or single line switching on synchronization.
It can set up 8 parallel points with synchronization features of 8 free definitions.
It has net working and upper computer communication function

AC control panels are used to display the working conditions of each high and low voltage distribution cabinets. Usually they can display current, voltage and circuit breaker closing instructions. The feature of AC panel is low voltage distribution cabinet, matching DC panels and provides power distribution for DC panels and distribution room. AC panel distributes the AC power to each load feeder in the transformer station.

They are applicable to 35KV and the transformer stations below 35KV, which need two sets of AC power for mutual switch. AC panels provides power for DC panel, distribution for transformer station lighting, transformer station air conditioner (draught fan), storage power for switch yard, power for switch yard heater and switch yard interlock power.

The input and output of AC control panel is AC power. When AC power is cut off, there will be no output for AC panel. AC control panel is used for large and medium sized hydro power plant and transmission line.



Competitive Advantage from Xin Yi Hydro Turbine

Our factory was founded in 1958, is an enterprise of research and development, production and sales of micro and Small hydropower turbine in China .Xin Yi Hydro Turbine design and manufacture pico and micro and small hydro  turbine generator, these micro-hydro turbines is  a favorite for oversea clients. Till now Xin Yi hydro turbine built many micro and small hydropower plants in oversea, for the mini and micro hydro power turbines, Most of the river is situated in the canyon, however mini and micro hydro power turbine generators can be installed in the canyon, between the creek, it is easy to find a water fall to build these hydro power plants. The power house will be selected to a safety place to protect hydro turbine get wet. These models small hydro turbine 20KW.30KW.50KW.75kw.100KW.125kw.160kw.and 200KW is suitable for these project sites. It is our main popular water turbines for the domestic and oversea markets. We now manufacture mini & micro and small hydro turbine from 20KW to 10MW for one single hydro turbine generator. We can design and install hydro power plants for our clients. we have been producing these small water turbine generator for over 50years.Now we become the good solution of hydro power plants around the world.

First-class quality product is appraised by our user. we actively advocate: market-oriented, technology-leading, innovation as a means to actively explore the domestic and oversea market.
Now our hydro power turbines are sold to over 35 countries they are including  Lao.PDR, Albania, and Chile and South Africa and all over the world. We warmly welcome your inquiries regarding our micro and small hydropower turbine and generators, and look forward to getting more improvements by the cooperation with you in the future. Our improvement will bring more efficiency and benefits for you.



Our service is
Inquiry response : Your inquiries will be replied in 24 hours
Delivery time: 45 days to 60days for the small turbine from 20KW to 500kw.
We warmly welcome you to visit us and send email to us to inquire our small hydro turbine.
